T Bolt

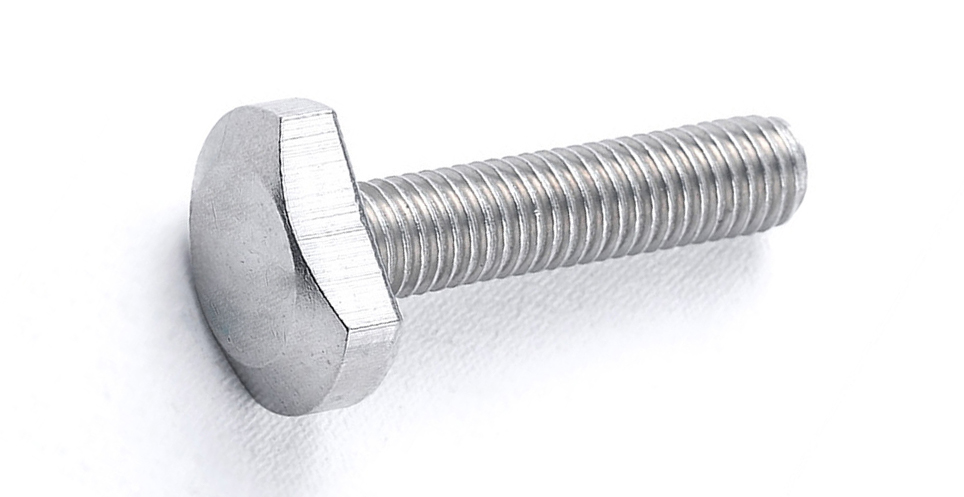

T-Bolts (Hammer Head)
Our T-Bolts, also known as Hammer Head Bolts, are specialized fasteners designed for quick installation into T-slots and channels. The unique T-shaped head allows the bolt to be inserted into a slot anywhere along its length and then rotated 90 degrees to lock into place. They are the industry standard for assembling aluminum profiles, securing solar panels, and clamping workpieces on machine tables.
Technical Specifications
| Head Style | T-Head / Hammer Head (Rectangular profile) |
|---|---|
| Installation | Drop-in or Slide-in (Self-locking in channel) |
| Thread Type | Metric Coarse, Metric Fine, UNC |
| Size Range | M6 to M24 (Common: M8, M10 for solar/profiles) |
| Length | 20 mm to 150 mm |
| Standards | DIN 787 (T-Slot), DIN 186, DIN 188, Custom Solar Specs |
| Materials | Stainless Steel (304, 316), Carbon Steel (8.8, 10.9) |
| Finish | Zinc Plated, Nickel Plated, Dacromet, Plain |
Key Features & Applications
- Solar Panel Mounting Clamps
- Aluminum Profile Assembly
- Quick "Drop-In" Installation
- CNC Machine Bed Clamping
- Adjustable Position in Slot
- Roof Racking Systems
- Anti-Rotation Design
- Modular Framing Systems
