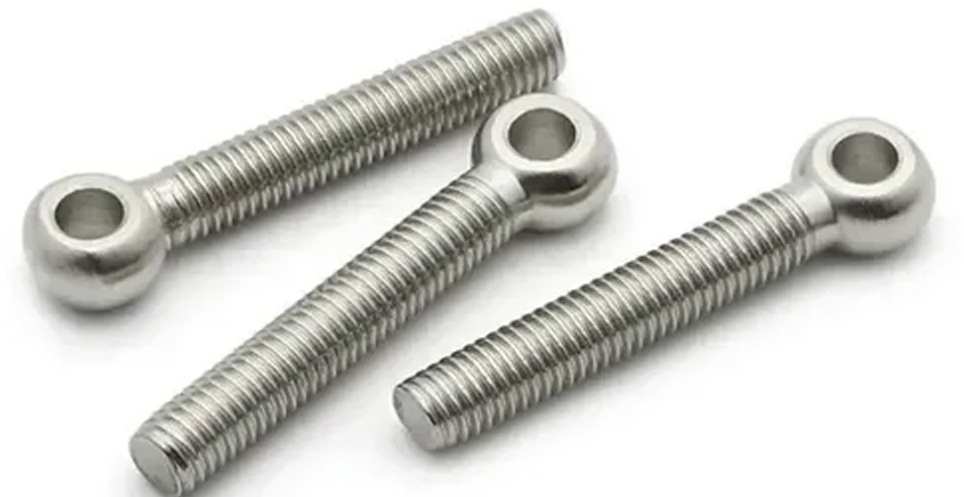

Gland Eye Bolt
Gland Eye Bolts (Swing Bolts)
Our Gland Eye Bolts are precision-manufactured fasteners designed for applications requiring frequent assembly and disassembly. Often referred to as Swing Bolts, they feature a pivot point that allows the bolt to swing out of the way without removing the nut completely. They are widely used in pressure vessels, manhole covers, valve bonnets, and hydraulic pump glands to ensure secure clamping with quick-release functionality.
Technical Specifications
| Head Style | Round Eye (Precision reamed hole for hinge pins) |
|---|---|
| Thread Type | Metric Coarse, Metric Fine, UNC, UNF, BSW |
| Size Range | M6 to M36 | 1/4” to 1 1/2” |
| Length | 25 mm to 300 mm (Custom lengths available) |
| Standards | DIN 444, ISO 273, Custom Drawings |
| Materials | Stainless Steel (304, 316, 316L), Carbon Steel (4.6, 8.8), Brass, Bronze |
| Finish | Natural, Zinc Plated, Nickel Plated, Black Oxide, Passivated |
Key Features & Applications
- Quick Release "Swing" Action
- Pressure Vessel Flanges
- Manway & Inspection Covers
- High Pivot Strength
- Hydraulic Cylinder Ends
- Paper & Pulp Machinery
- Valve Bonnets
- Easy Maintenance Access
