Grub Screw

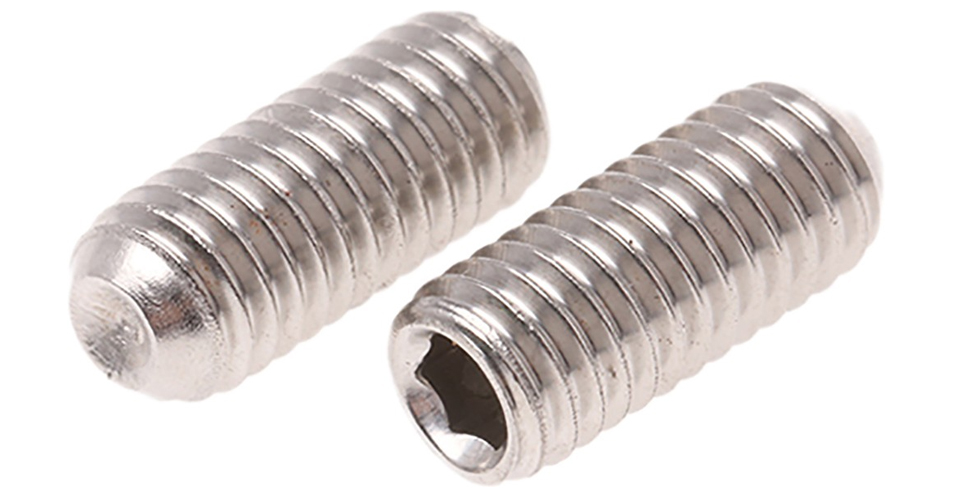

Grub Screws (Socket Set Screws)
Our Grub Screws, technically known as Socket Set Screws, are headless fasteners designed to secure an object within or against another object. Commonly used to secure pulleys, gears, and shaft collars to shafts, they sit flush with or below the surface of the material for a streamlined, safe finish. We offer various point styles including Cup Point (standard grip), Cone Point (permanent setting), and Flat Point (frequent adjustment) to suit every mechanical requirement.
Technical Specifications
| Head Style | Headless (Fully threaded body) |
|---|---|
| Drive Type | Hex Socket (Allen Key) or Slotted |
| Point Types | Cup Point, Cone Point, Flat Point, Dog Point, Knurled Cup |
| Size Range | M2 to M24 | 1/16” to 1” Diameter |
| Length | 3 mm to 100 mm |
| Standards | DIN 913 (Flat), DIN 914 (Cone), DIN 915 (Dog), DIN 916 (Cup), ISO 4026 |
| Materials | High Tensile Steel (45H), Stainless Steel (304, 316), Brass |
| Finish | Black Oxide (Standard), Zinc Plated, Nickel Plated |
Key Features & Applications
- Securing Gears & Pulleys
- Flush / Sub-Surface Installation
- Shaft Collars & Couplings
- High Torque Transmission
- Vibration Resistant (Knurled options)
- Door Handles & Faucets
- Precision Instrument Assembly
- Moving Part Safety (No protruding head)
