Elbow / Tee

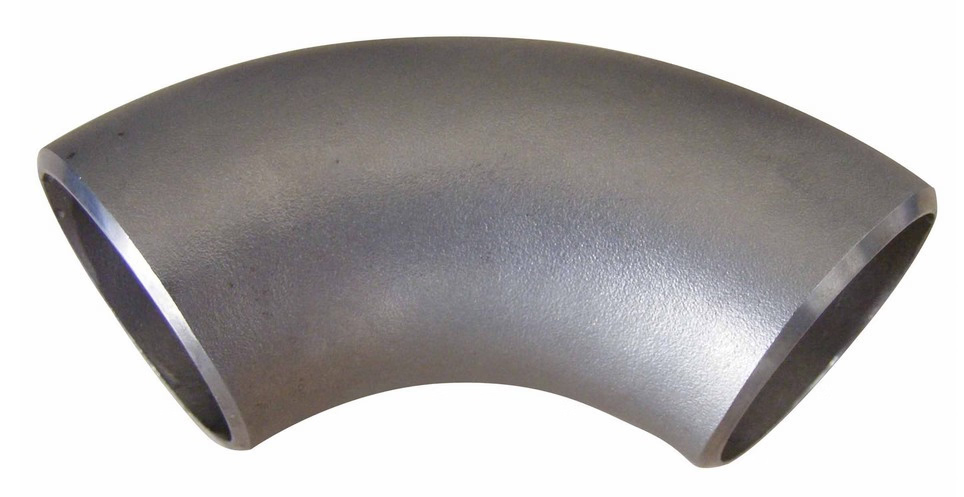

Pipe Elbows (45° / 90° / 180°)
Our industrial Pipe Elbows are engineered to change the direction of flow in a piping system with minimal pressure drop. We manufacture Buttweld, Socket Weld, and Threaded elbows in various angles (45°, 90°, and 180° Return Bends). Available in both Long Radius (LR) for reduced friction and Short Radius (SR) for compact spaces, our elbows undergo strict NDT testing to ensure leak-proof performance in high-pressure environments.
Elbow Specifications
| Angles | 45°, 90°, 180° (Return Bend) |
|---|---|
| Radius Types | Long Radius (LR = 1.5D), Short Radius (SR = 1.0D), 3D, 5D Bends |
| Connection Type | Buttweld (BW), Socket Weld (SW), Threaded (NPT/BSP) |
| Size Range | 1/2" to 48" (Seamless) | Up to 72" (Welded) |
| Wall Thickness | Sch 5s to Sch XXS |
| Dimensional Standards | ASME B16.9 (Buttweld), ASME B16.11 (Forged), MSS-SP-43 |

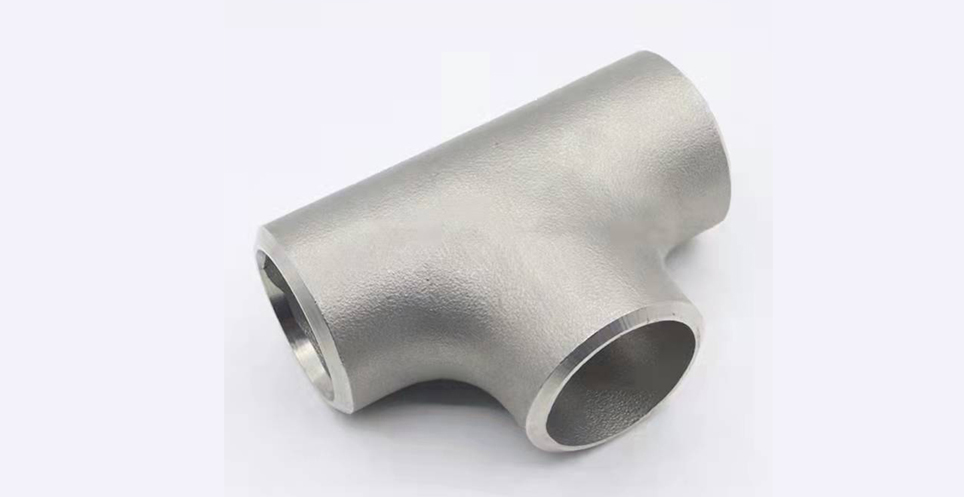

Pipe Tees (Equal & Reducing)
Pipe Tees are T-shaped fittings with three openings (two on the run, one on the branch) used to combine or split fluid flow. We offer **Equal Tees** (all ports same size) for uniform distribution and **Reducing Tees** (smaller branch port) for connecting pipes of different diameters. For pipeline cleaning and pigging operations, we also supply specialized **Barred Tees** with internal guide bars.
Tee Specifications
| Types | Equal Tee, Reducing Tee, Barred Tee, Lateral Tee (45°) |
|---|---|
| Construction | Seamless, Welded (ERW/EFW) |
| Size Range | 1/2" to 48" (Custom large sizes for welded) |
| Pressure Class | Buttweld: Schedule based (Sch 10 - Sch XXS) Forged: 3000#, 6000#, 9000# |
| Standards | ASME B16.9, ASME B16.11, MSS-SP-75 |
Common Material Grades
| Material Type | Standard & Grade |
|---|---|
| Stainless Steel | ASTM A403 WP304/304L, WP316/316L, WP321, WP347 |
| Carbon Steel | ASTM A234 WPB, WPC | ASTM A105 (Forged) | A420 WPL6 (Low Temp) |
| Alloy Steel | ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 |
| Duplex Steel | ASTM A815 UNS S31803 (Duplex), S32750 (Super Duplex) |
| High Nickel Alloys | Inconel 600/625, Monel 400, Hastelloy C276, Titanium Gr.2 |
Key Features & Applications
- Elbows: Flow direction change (90° most common)
- Tees: Fluid mixing and distribution
- Seamless flow with low turbulence
- High-pressure hydraulic lines
- Oil & Gas Pipelines
- Chemical Processing Plants
- Available in Beveled End (BE) for welding
- NACE MR0175 Compliant for Sour Service
