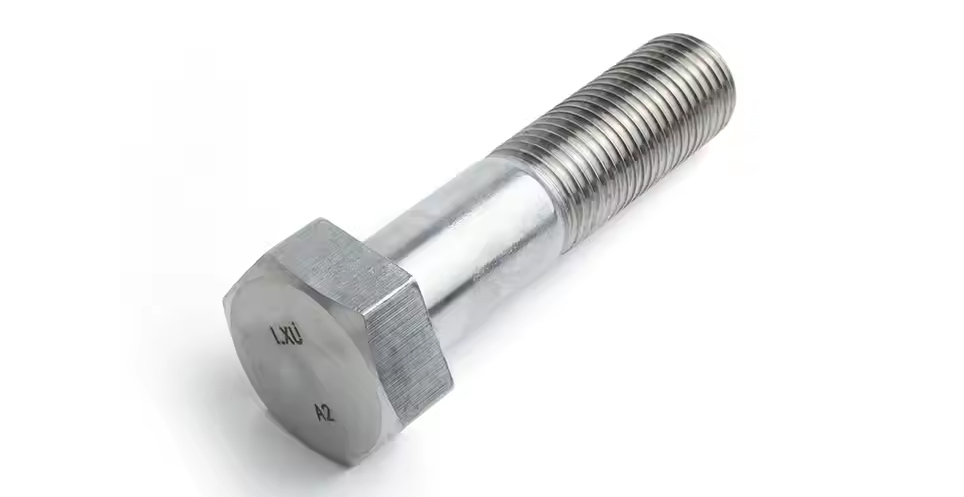

Half Thread Hex Bolt
Half Thread Hex Bolts
Our Half Thread Hex Bolts (Partially Threaded) are engineered for critical structural joints where shear strength is paramount. Featuring an unthreaded shank (grip length) below the head, these bolts provide stronger alignment and load-bearing capacity than fully threaded alternatives. They are the industry standard for steel construction, heavy machinery, and automotive applications where the bolt body must withstand high lateral forces.
Technical Specifications
| Head Style | Hexagonal Head (Standard or Heavy Hex) |
|---|---|
| Threading | Partially Threaded (Specific thread length based on diameter) |
| Grip Length | Unthreaded shank for precision alignment & shear load |
| Size Range | M6 to M64 | 1/4” to 2 1/2” Diameter |
| Length | 30 mm to 500 mm (Longer lengths typically partial thread) |
| Standards | DIN 931, ISO 4014, ASME B18.2.1 (Heavy Hex), BS 3692 |
| Materials | High Tensile (8.8, 10.9), Stainless Steel (304, 316), Duplex |
| Finish | Zinc Plated (Blue/Yellow), Hot Dip Galvanized, Black Oxide |
Key Features & Applications
- High Shear Strength
- Structural Steel Framework
- Precise Alignment Shank
- Automotive Suspension
- Resistant to Thread Damage
- Heavy Industrial Machinery
- Vibration Resistance
- Pumps & Motors Assembly
