Stud Bolt
Stud Bolts

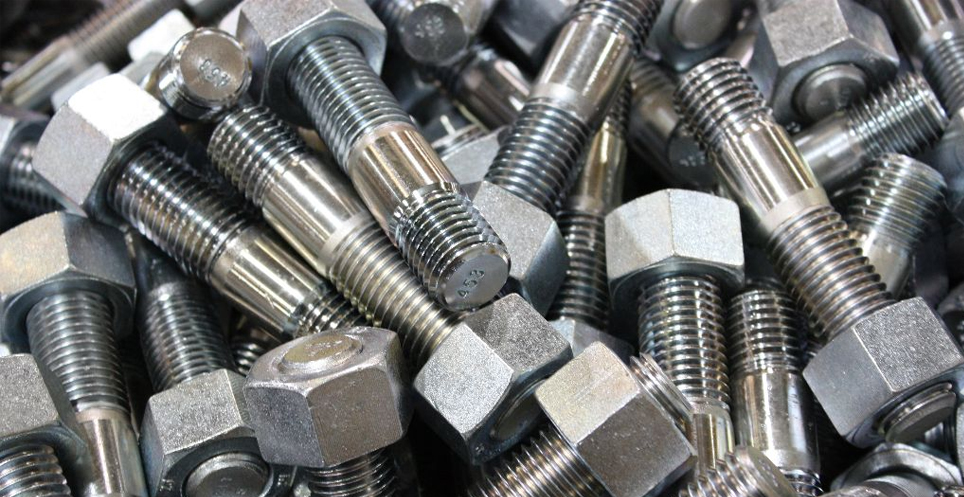

Our high-performance Stud Bolts are fully threaded rods designed for flange connections in pipelines, valves, and heavy machinery. Unlike standard bolts, they feature threads along their entire length, allowing for tension from both ends using heavy hex nuts. Essential for oil & gas and petrochemical industries, they ensure leak-proof seals under high pressure and temperature conditions.
Technical Specifications
| Head Style | No head, fully threaded rod design |
|---|---|
| Thread Type | Metric (Coarse/Fine), UNC, UNF, 8UN (Full Thread) |
| Size Range | M6 to M64 | 1/4” to 2 1/2” Diameter |
| Length Range | 20 mm to 200 mm | 3/4” to 8” (Custom lengths available) |
| Standards | ASTM A193 (B7, B8, B8M), DIN 975, DIN 976, ISO 3506 |
| Materials | Carbon Steel, Stainless Steel (304, 316), Alloy Steel (Gr B7/L7), Duplex Stainless Steel |

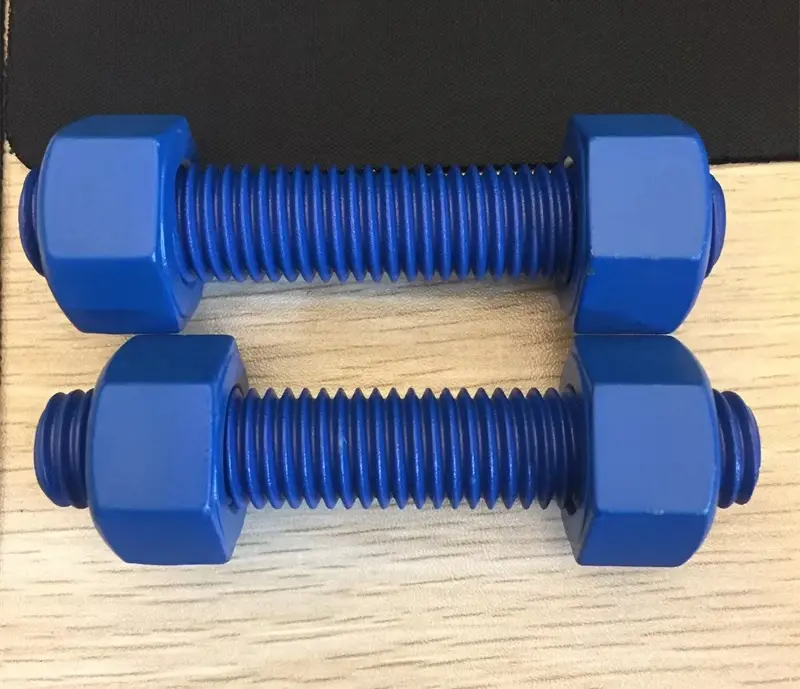

| Finish | Zinc Plated, Hot-Dip Galvanized (HDG), Plain (Black), PTFE/Xylan Coated |
| Matching Nuts | Supplied with 2 Heavy Hex Nuts (ASTM A194 Gr 2H/8/8M) |
Key Features & Applications
- High-Pressure Flange Connections
- Petrochemical Pipelines
- Continuous Thread Design
- Heat Exchangers & Valves
- High-Temperature Resistance
- Oil & Gas Refineries
- Easy Tensioning from Both Ends
- Leak-Proof Sealing
